Brand Name : FEXIK
Model Number : F-T8
Certification : ISO9001 CE
Place of Origin : CHINA
MOQ : 1
Price : USD 240000-270000 USD/SET
Payment Terms : T/T
Supply Ability : 15 sets/year
Delivery Time : 120-150days
Packaging Details : standard package for sea shipping
Usage : to pack toilet paper and kitchen towel rolls
Production speed : 35-140 packs/min
Infeed : 1-5 lanes
Layers : 1 or 2 layers design
Average format changeover time : 10-30 min
Roll diameter : 90-160(200)mm(3.5”-6.3”)(7.9”)
Roll length : 90-300(3.5”-11.8”)
Pack width : 100-650mm(3.9”-25.6”)
Pack length : 90-630mm(3.5”-24.8”)
Pack height : 90-270mm(300mm) (3.5”-10.6”)(11.8”)
Power supply : Power supply
Air Consumption : <500 L/Min
Wrapping Material : PE,LDPE
PE thickness,LDPE : 25-50 microns
Real Power consumption : 32KW
F-T8 Automatic Toilet Paper & Kitchen Towel Wrapping Machine
General Description
F-T8 model paper roll wrapping machine is very economical and efficient packaging machine for hygienic rolls. It is dedicated to pack single or double toilet or kitchen towel rolls in film.
This roll wrapper is easy to operate, it is full servo driven and controlled by the most advanced motion controller SIMOTION D, origin Siemens brand, which allows extremely reliable production process. It reaches output production speed over 140 packs/minute. With a very low cost of maintenance and with compact dimensions, this wrapper is ideal for mid-range or large-range converting lines.

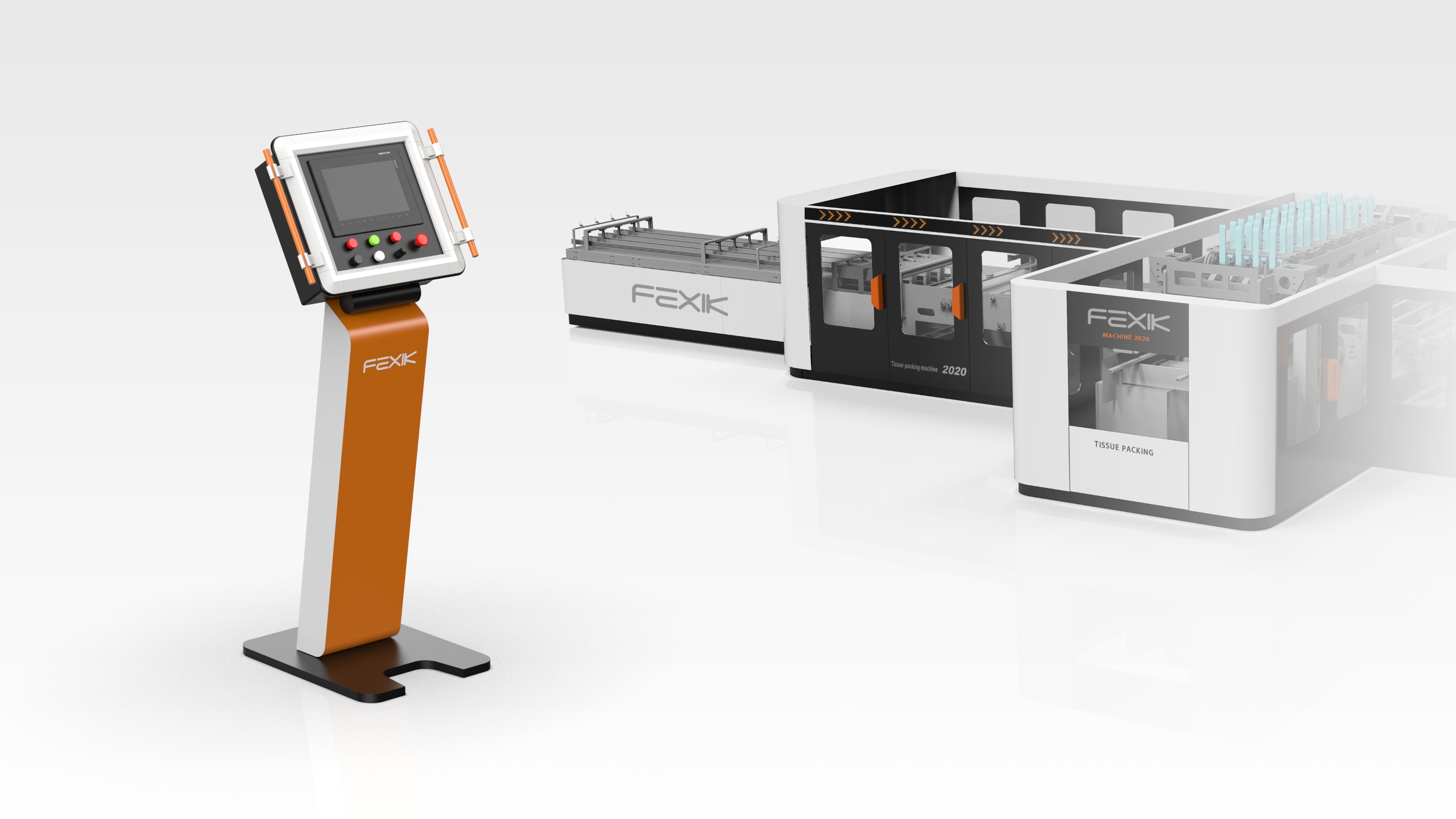

Machine Appearance
Technical parameters
Name | Technical Parameters |
Production speed | 35-140 packs/min |
Max mechanical speed | 160 packs/min |
Infeed | 1-4 lanes (5th lane optional) |
Layers | 1 or 2 layers design |
Average format changeover time | 10-30 min |
Roll diameter | maximum 160(200)mm(3.5”-6.3”)(7.9”) |
Roll length | maximum 300(3.5”-11.8”) |
Pack width | maximum 650mm(3.9”-25.6”) |
Pack length | maximum 630mm(3.5”-24.8”) |
Pack height | maximum 270mm(300mm) (3.5”-10.6”)(11.8”) |
Power supply | 380V 50HZ/60HZ |
Air Consumption | <500 L/Min |
Wrapping Material | PE,LDPE |
PE thickness,LDPE | 25-50 microns |
Real Power consumption | 32KW |
Machine weight | About 8000kg |
Key Advantages
• Continuous motion design
• Motorized adjustments with digital feedback and calculated positions for fast initial pack setup
• Changeover wizard provides onscreen instructions during changeover
• Compliant materials for wide operating window and variations to incoming product
• Large format range
• Limited change parts
• Closed loop film tension control
• Potential film savings with small panels and thinner films
• Flexible layout options and motorized lap seal for left and right film panels
• Fast response seal heater: Benefits include better pack quality, energy and film savings, and faster ramp-up rates
• LED indicators for speed or warning
Optional
5th lane
Additional conveyors
Roll handling devices
Vertical packing function for bath roll tissue
welcome to contact us!
![]() |

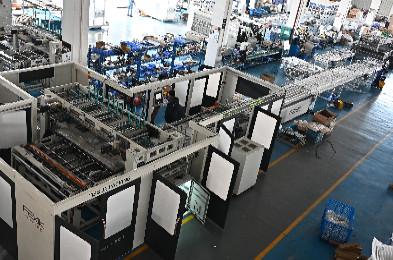

Kitchen Towel 400L/Min 120packs/Min Paper Roll Wrapping Machine Images |
