Roll Dia90mm 70packs/Min Paper Roll Wrapping Machine

Name: Roll Dia90mm 70packsMin Paper Roll Wrapping Machine
Brand: FEXIK
Price: 240000 USD

Roll Dia90mm 70packs/Min Paper Roll Wrapping Machine Manufactures

Brand Name : FEXIK

Model Number : F-T8

Certification : ISO9001/CE

Place of Origin : CHINA

MOQ : 1

Price : USD 240000-270000 USD/SET

Payment Terms : T/T

Supply Ability : 15 sets/year

Delivery Time : 120-150days

Packaging Details : standard package for sea shipping

Usage : automatic bath roll tissue packing machine paper towel wrapping machine

Production speed : 70 packs/min

Infeed : up to five lanes

Layers : 1 or 2 layers design

Average format changeover time : 10-30 min

Roll diameter : 90-160(200)mm(3.5”-6.3”)(7.9”)

Roll length : 90-300(3.5”-11.8”)

Pack width : 100-650mm(3.9”-25.6”)

Pack length : 90-630mm(3.5”-24.8”)

Pack height : 90-270mm(300mm) (3.5”-10.6”)(11.8”)

Power supply : Power supply

Air Consumption : ＜500 L/Min

Wrapping Material : PE,LDPE

PE thickness,LDPE : 25-50 microns

Real Power consumption : 32KW

Contact Now

automatic bath roll tissue packing machine paper towel wrapping machine

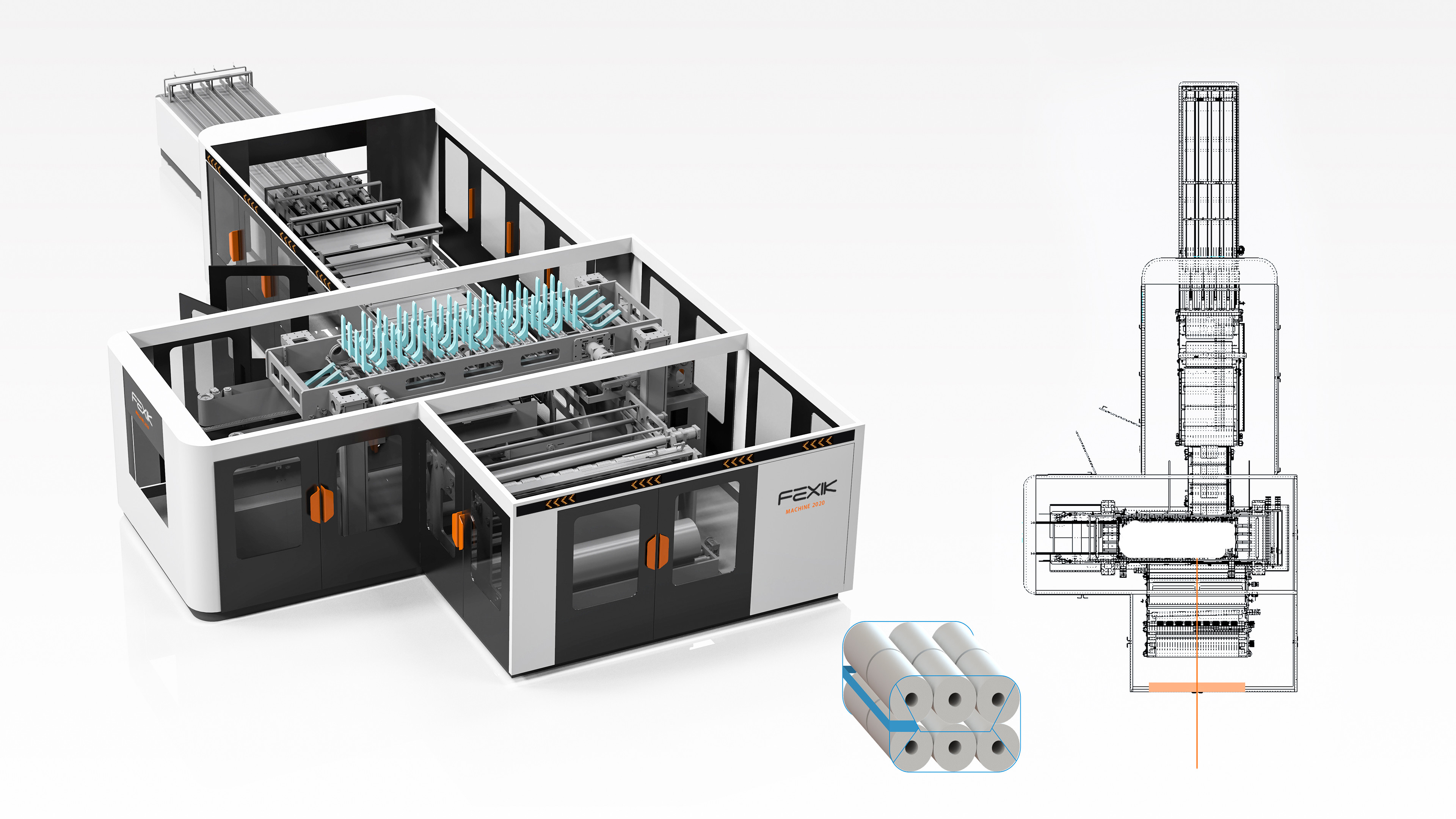

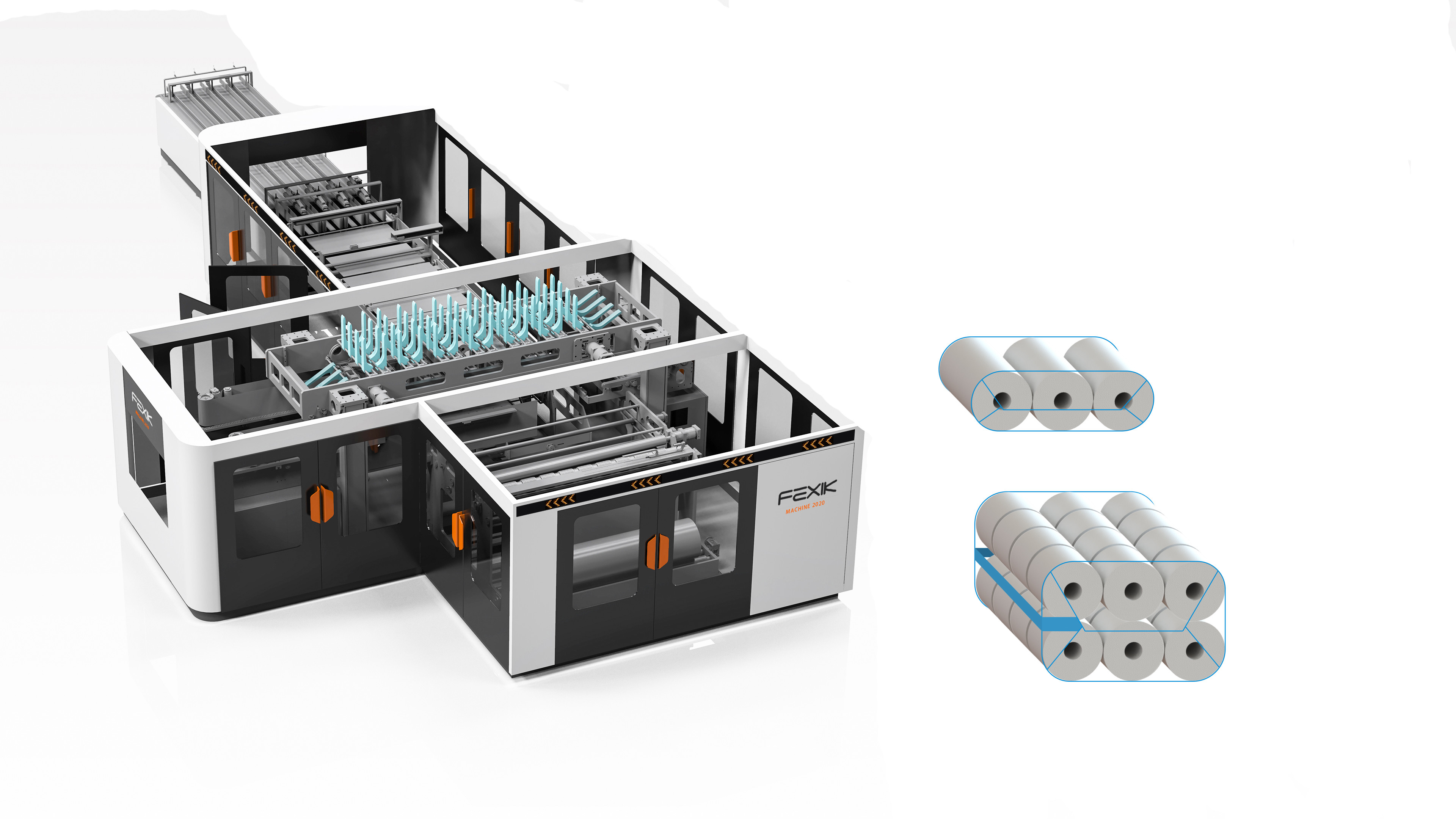

1. Machine Appearance

As a result of a constant search to create something unique and to contribute to ecologically oriented way of thinking, we have launched a new product- F-T8 roll wrapping machine.

Roll Dia90mm 70packs/Min Paper Roll Wrapping Machine

2. General Description

This equipment is our latest design and most advanced packing machine for toilet tissue and kitchen towel rolls with a wide range of wrapping configuration, at end part of a converting line. It is a new generation wrapping machine with high production speed, maintaining perfect shape of the packs when it is running in a high speed, even in 140 pack/min at the same time grants extremely easy and fast changeover time.

3. Main Features and Advantages

1) The double-layer bundling packing machine provides a variety of wrapping configurations for tissue paper rolls.

2) This wrapping machine is easy to operate with fully servo driven and controlled by the most advanced motion controller SIMOTION D.

3) User friendly Human interface is to help us with operation & changeovers, variety of packaging configurations are available to be set on it. This wrapping machine for paper rolls is designed have all kinds of packaging configurations according to customers’ requirements.

4) Optional for five lanes infeeding function and vertical toilet tissue rolls configuration.

5) Selecting bearings, reducers, guide rails, sliders, and various photoelectric are chosen from the world's well-known brands. At the same time, rugged components are used in all areas to reduce vibration and ensure long-term reliability

6) This wrapper can pack perfectly even running in high speed.

7) The use of motor adjustment is convenient and quick, providing an extremely easy and quick format changeover.

Roll Dia90mm 70packs/Min Paper Roll Wrapping Machine

Main Technical Parameters

Name	Technical Parameters
Production speed	35-140 packs/min
Max mechanical speed	160 packs/min
Infeed	1-5 lanes
Layers	1 or 2 layers design
Average format changeover time	10-30 min
Roll diameter	90-160(200)mm(3.5”-6.3”)(7.9”)
Roll length	90-300(3.5”-11.8”)
Pack width	100-650mm(3.9”-25.6”)
Pack length	90-630mm(3.5”-24.8”)
Pack height	90-270mm(300mm) (3.5”-10.6”)(11.8”)
Power supply	380V 50HZ/60HZ
Air Consumption	＜500 L/Min
Wrapping Material	PE,LDPE
PE thickness,LDPE	25-50 microns
Real Power consumption	32KW
Machine weight	About 8000kg

Roll Dia90mm 70packs/Min Paper Roll Wrapping Machine
