The tissue arangment,flip,counting line up,bag push,forward filling,bag filling,pulling,sending,opening.sealing,cutting and other actions implementing organization all use servo drive control,simple operation and easy maintenance.
Configure bag opening detection ptotection,waste bag automatic stop-out,air source management,self-diagnosis fault alarm display,servo overload protection and incoming automatic distribution function.
Facial tissue automatic production line:
Single channel facial tissue cutting machine+facial tissue single packing machine+facial tissue bundle packing machine
Specifications:
| Item | Technical Parameters |
| Product name | Facial tissue automatic packing machine |
| Out put | 5-23 bags/min |
| Size range bag | L550*W420*H120mm |
| Configuration | 1-3 rows 2-6 bags per row |
| Power supply | 380V 50HZ |
| Mini air pressure | 0.5 Mpa |
| Packing material | PE, CPP Pre-cut bag |
| Power consumption | 11kw |
| Machine size | L2600*W1500*H1950mm |
| Machine weight | 2000kg |
| Automatic type | Full automatic |
| Stable Speed | 5-23 packs/min |
Feature:
It adopts full servo technology, touch screen and PLC control system. Convenient and quick parameter setting, with the automatic design, it can accomplish feeding, arranging, opening the bag, filling into the bag, inserting angle and sealing. The world's first 180-degree flip on the bag body, making the device smaller, lower energy consumption.
The machine is designed to have a quick, flexible format changeover. Wide packing configurations meed different market's demands. This model is the ideal model to pack facial tissue and wet wipes.

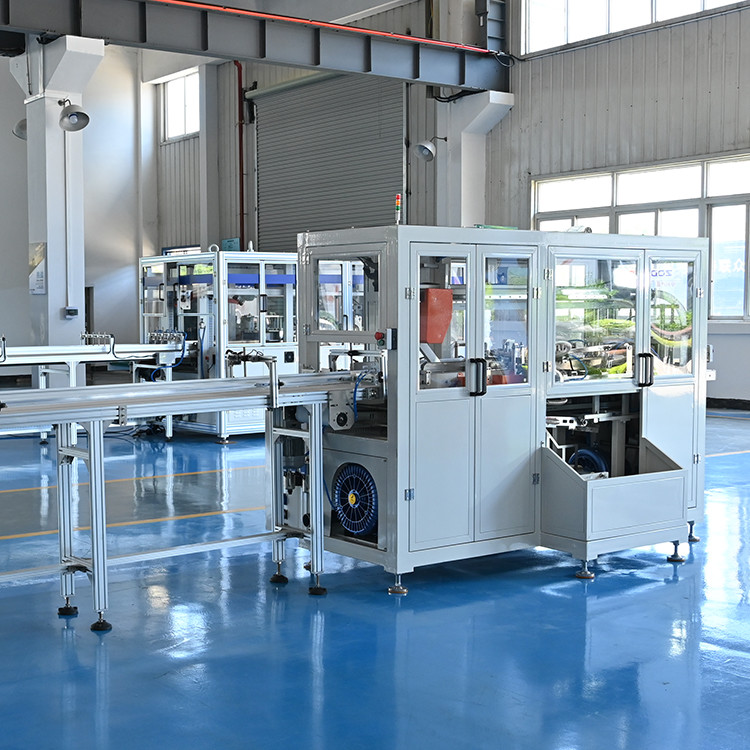

Real Product:
Facial tissue and wet wipes bundle packing machine in mass production, gurrantee for the delivery time and good quality.
Our Service
1) One year warranty
2) Engineers available to do machinery service overseas
3) Test sample support
4) 24 hours a day online service
Delivery terms:
• 30% with the order as down-payment.
• 70% after machine completion, but before shipment.
• Will finished manufacturing in 15-30days after received the down-payment.
