3rows Facial Tissue Making Machine , 23packs/Min Full Automatic Packing Machine

Name: 3rows Facial Tissue Making Machine 23packsMin Full Automatic Packing Machine
Brand: ZODE
Price: 38000 USD

3rows Facial Tissue Making Machine , 23packs/Min Full Automatic Packing Machine Manufactures

Brand Name : ZODE

Model Number : ZD-C25

Certification : CE,ISO

Place of Origin : China mainland

MOQ : 1 set

Price : USD 38000-USD 41000 per set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 25-35 sets per month

Delivery Time : 15-30 days

Packaging Details : plastic film+Vacuum+export wooden case

Product name : high speed soft facial tissue bundling packing machine

Packing material : PE pre-made bag

Packing configuration : 1 row, 2 rwo, 3 row

Packing format : 2 to 12 bags per bundler pack

Control system : Control by PLC

Function : facial tissue, wet wipes packaging machine

Power : 380V 50Hz

After-sales service : Engineer available to customer's factory to install machine

Stable Speed : 5-23 packs/min

Packing size : L550*W420*H150mm

Contact Now

Full automatic high speed soft facial tissue

bundling packing machine for sale

Configure bag opening detection ptotection,waste bag automatic stop-out,air source management,self-diagnosis fault alarm display,servo overload protection and incoming automatic distribution function.This machine is used for soft-drawing multi-piece middle bag packing, convey automatically by conveyer belt. This machine semble paper-feeding, bagging, sealing and cuting in one body.

we have already exported to many countries, for example the USA,Singapore,Australia,Korea,and so on.

3rows Facial Tissue Making Machine , 23packs/Min Full Automatic Packing Machine

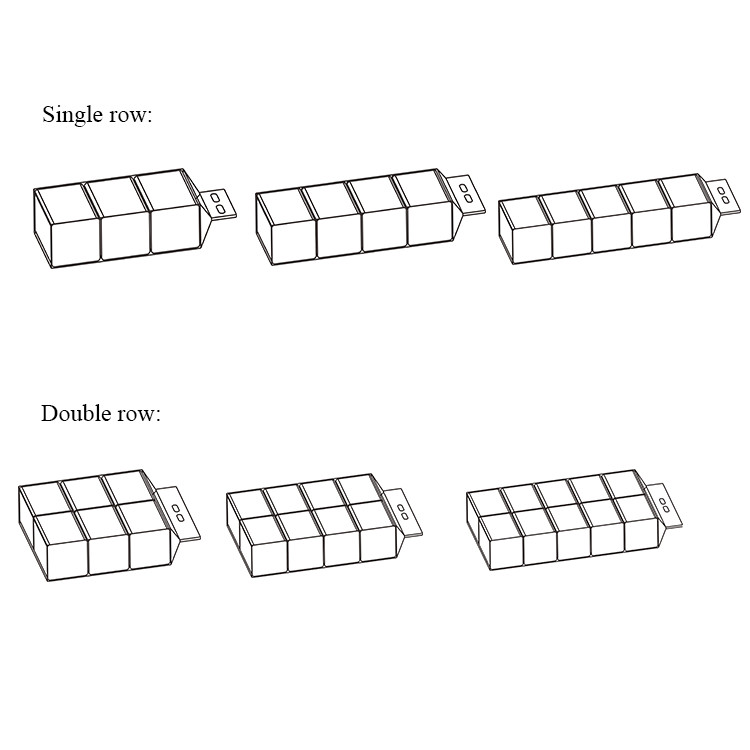

(1) This model is designed to package facial tissue and wet wipes in single row, double rows and three rows.

(2) The maximum packaging size is L550*W420*H120mm. Of course, it also can be adjusted to the size that you want.
3rows Facial Tissue Making Machine , 23packs/Min Full Automatic Packing Machine

3rows Facial Tissue Making Machine , 23packs/Min Full Automatic Packing Machine

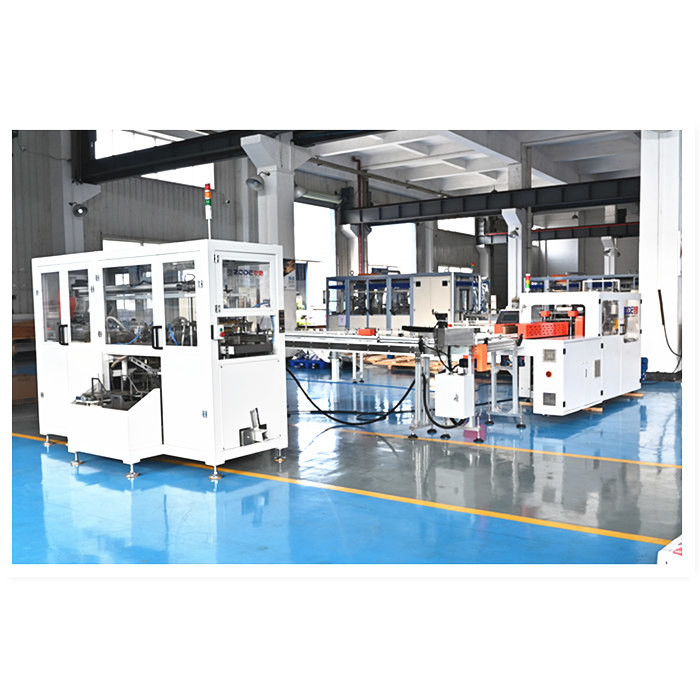

Facial tissue automatic production line:

Single channel facial tissue cutting machine+facial tissue single packing machine+facial tissue bundle packing machine

Specifications:

Item	Technical Parameters
Product name	Facial tissue automatic packing machine
Out put	5-23 bags/min
Size range bag	L550W420H120mm
Configuration	1-3 rows 2-6 bags per row
Power supply	380V 50HZ
Mini air pressure	0.5 Mpa
Packing material	PE, CPP Pre-cut bag
Power consumption	11kw
Machine size	L2600W1500H1950mm
Machine weight	2000kg
Automatic type	Full automatic
Stable Speed	5-23 packs/min

Feature:

It adopts full servo technology, touch screen and PLC control system. Convenient and quick parameter setting, with the automatic design, it can accomplish feeding, arranging, opening the bag, filling into the bag, inserting angle and sealing. The world's first 180-degree flip on the bag body, making the device smaller, lower energy consumption.

The machine is designed to have a quick, flexible format changeover. Wide packing configurations meed different market's demands. This model is the ideal model to pack facial tissue and wet wipes.

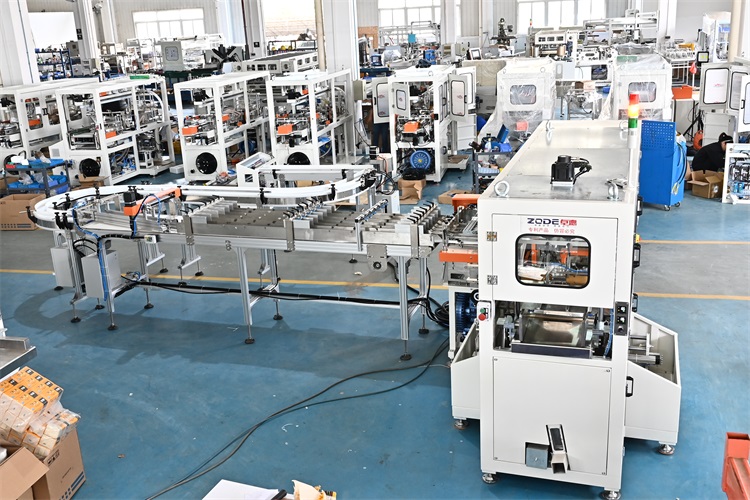

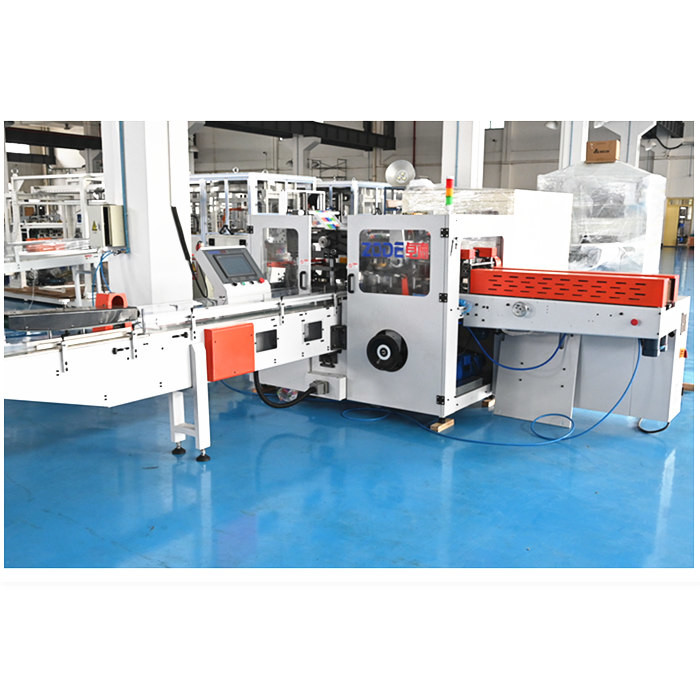

Real Product:

Facial tissue and wet wipes bundle packing machine in mass production, gurrantee for the delivery time and good quality.

Our Service

1) One year warranty

2) Engineers available to do machinery service overseas

3) Test sample support

4) 24 hours a day online service

Delivery terms:

• 30% with the order as down-payment.
• 70% after machine completion, but before shipment.
• Will finished manufacturing in 15-30days after received the down-payment.
